What is Oasis™ WetSeal Technology

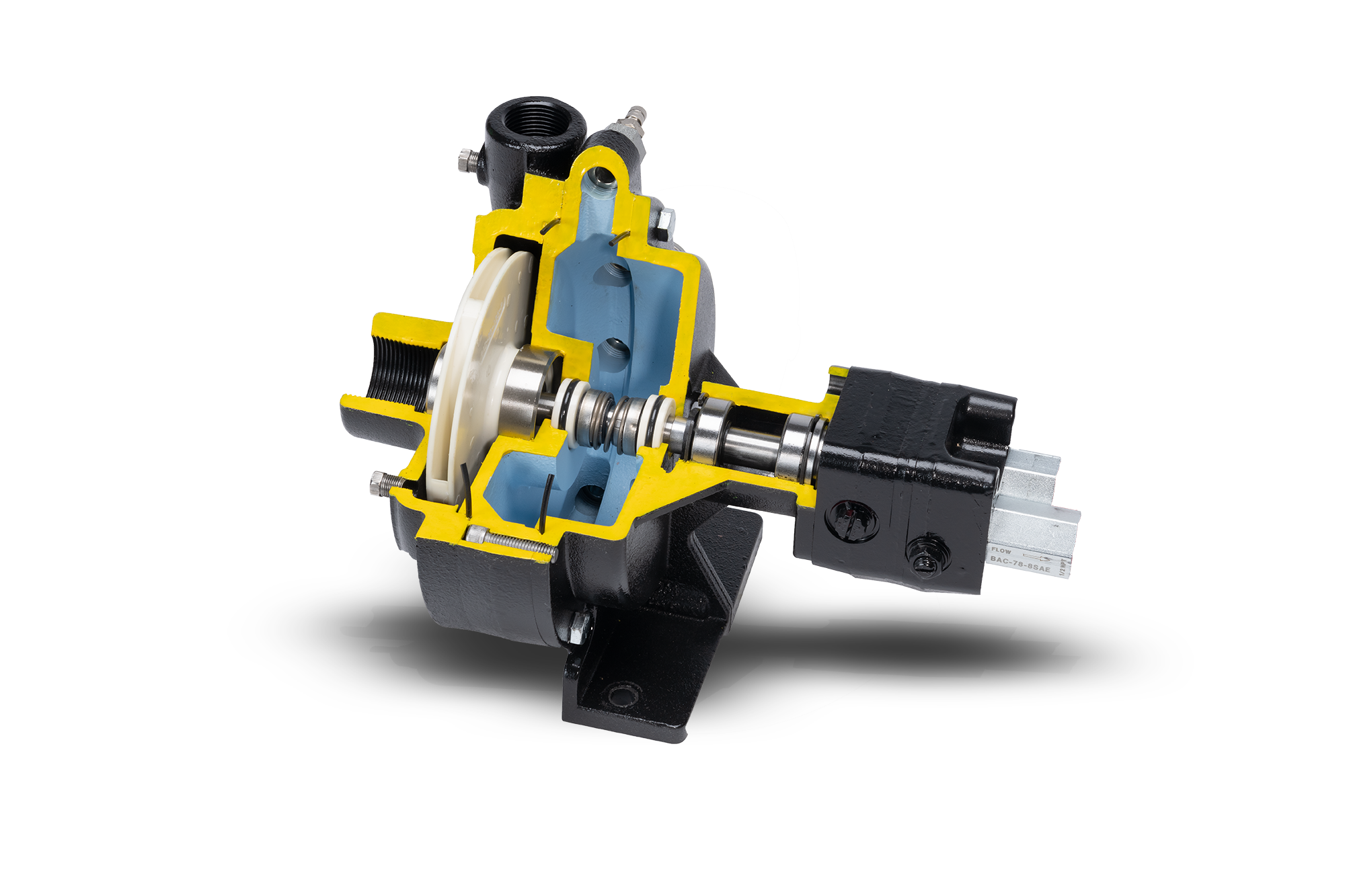

Ace Pump's Oasis™ Wet Seal Technology prevents the pumped liquid from contacting the shaft seals. The seals operate in a reservoir filled with a specially formulated barrier fluid for seal face lubrication and heat dissipation. Additionally, air pressure is introduced to prevent pump fluid from contaminating the seal reservoir. This isolation of the seals prevents abrasive wear of the seal faces and run dry seal failures.
• First pump with Oasis WetSeal Technology was delivered in 2007. Ace offered this technology on their MAX series of pumps.
• In 2008, Ace won an AE50 award for pumps with Oasis technology.
• In 2019, Ace started offering to include the Pro 5 family of pumps.
• Today is your chance to eliminate pump downtime from run dry or abrasive issues. Contact your Ace dealer for more information!

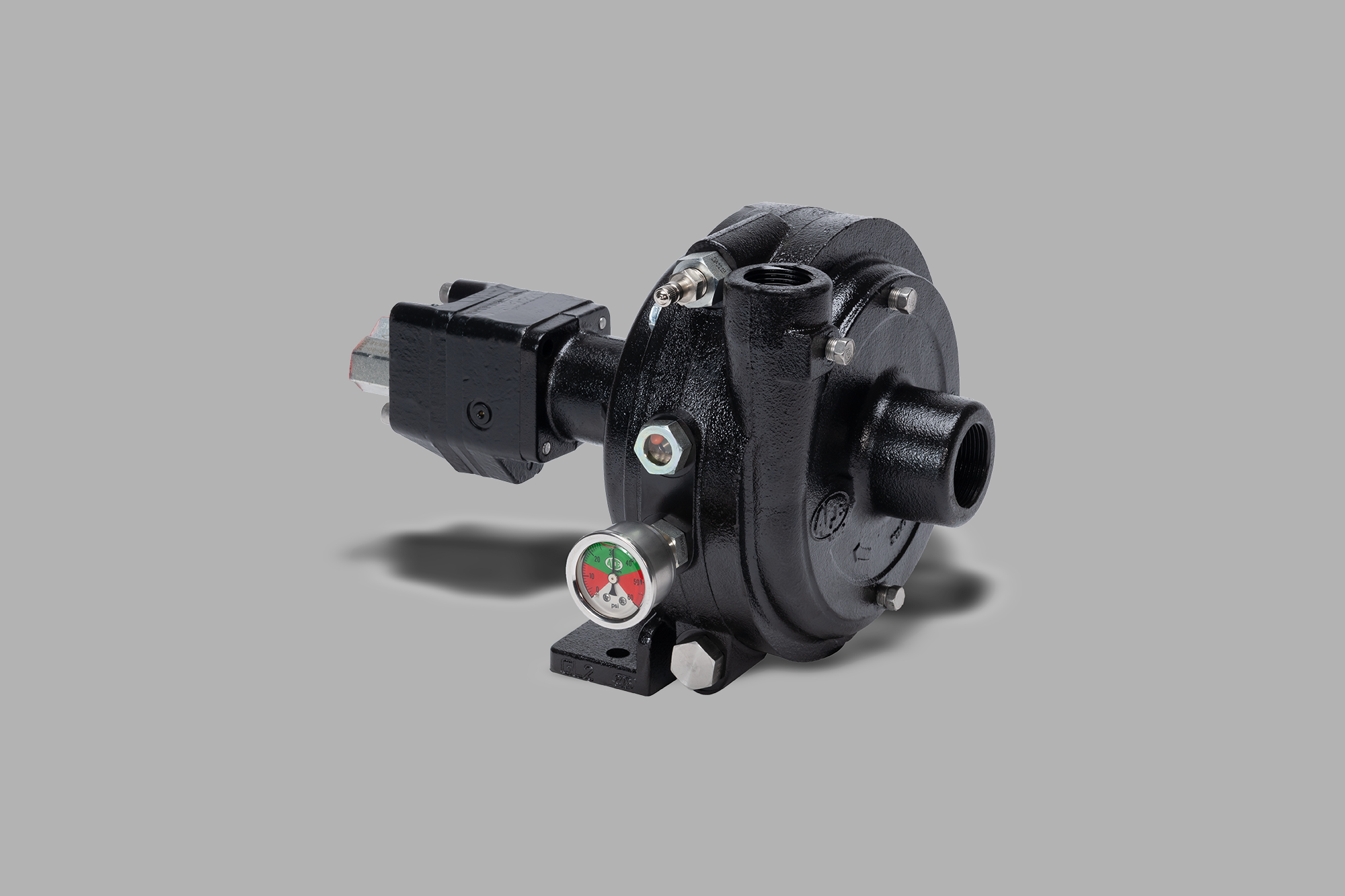

FMCWS-125-HYD-204 | FMCWS-125-HYD-206
Suction: 1-1/4" NPT
Discharge: 1" NPT
Pressures up to 120 PSI (8.3 BAR)
Flows up to 92 GPM (350 LPM) for 204 motor
Flows up to 110 GPM (416 LPM) for 206 motor

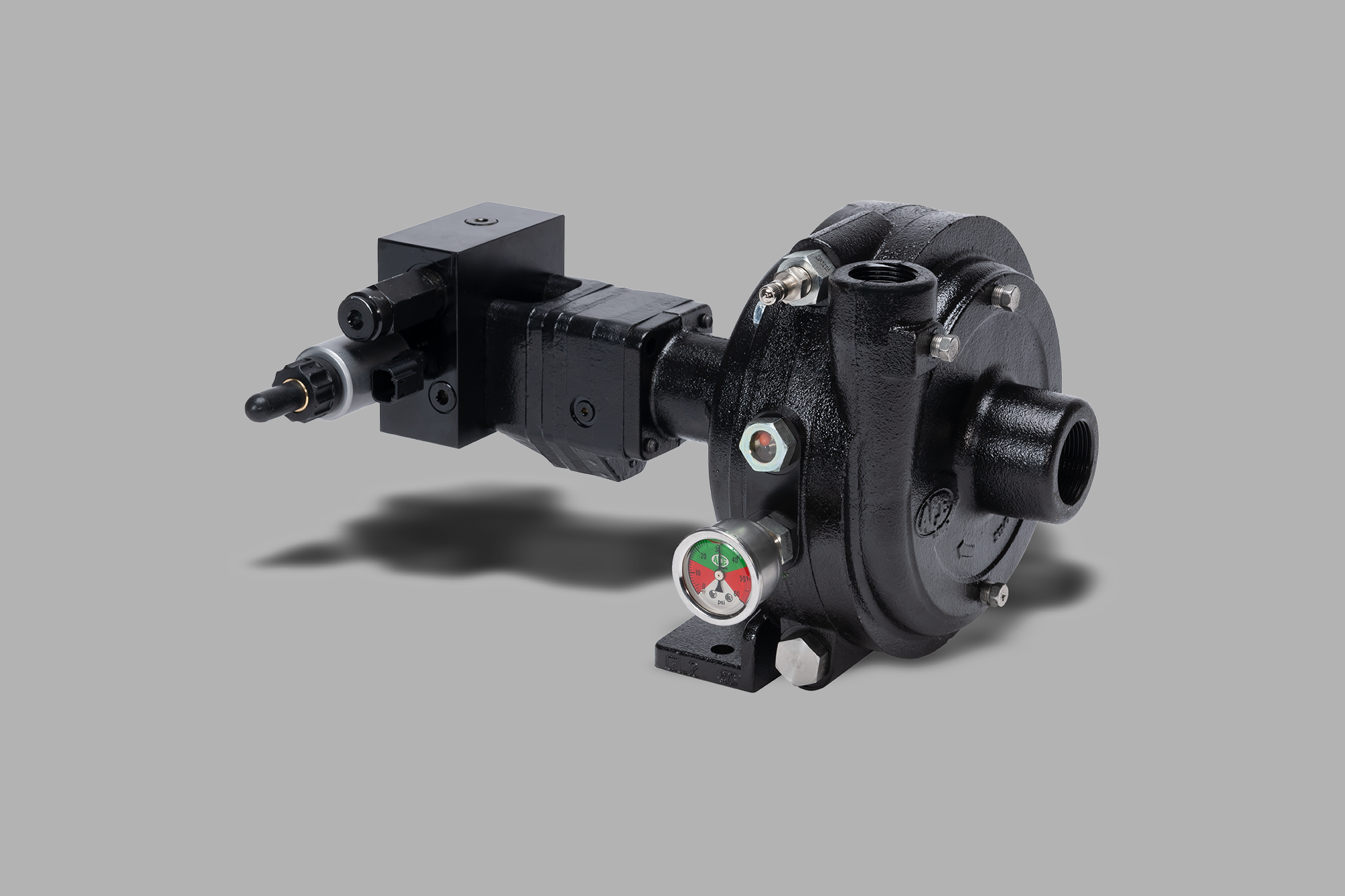

FMCWS-125-HYD-206-PWM
Suction: 1-1/4" NPT
Discharge: 1" NPT
Pressures up to 120 PSI (8.3 BAR)
Flows up to 110 GPM (416 LPM) for 206 motor
Pulse Width Modulated (PWM) motor

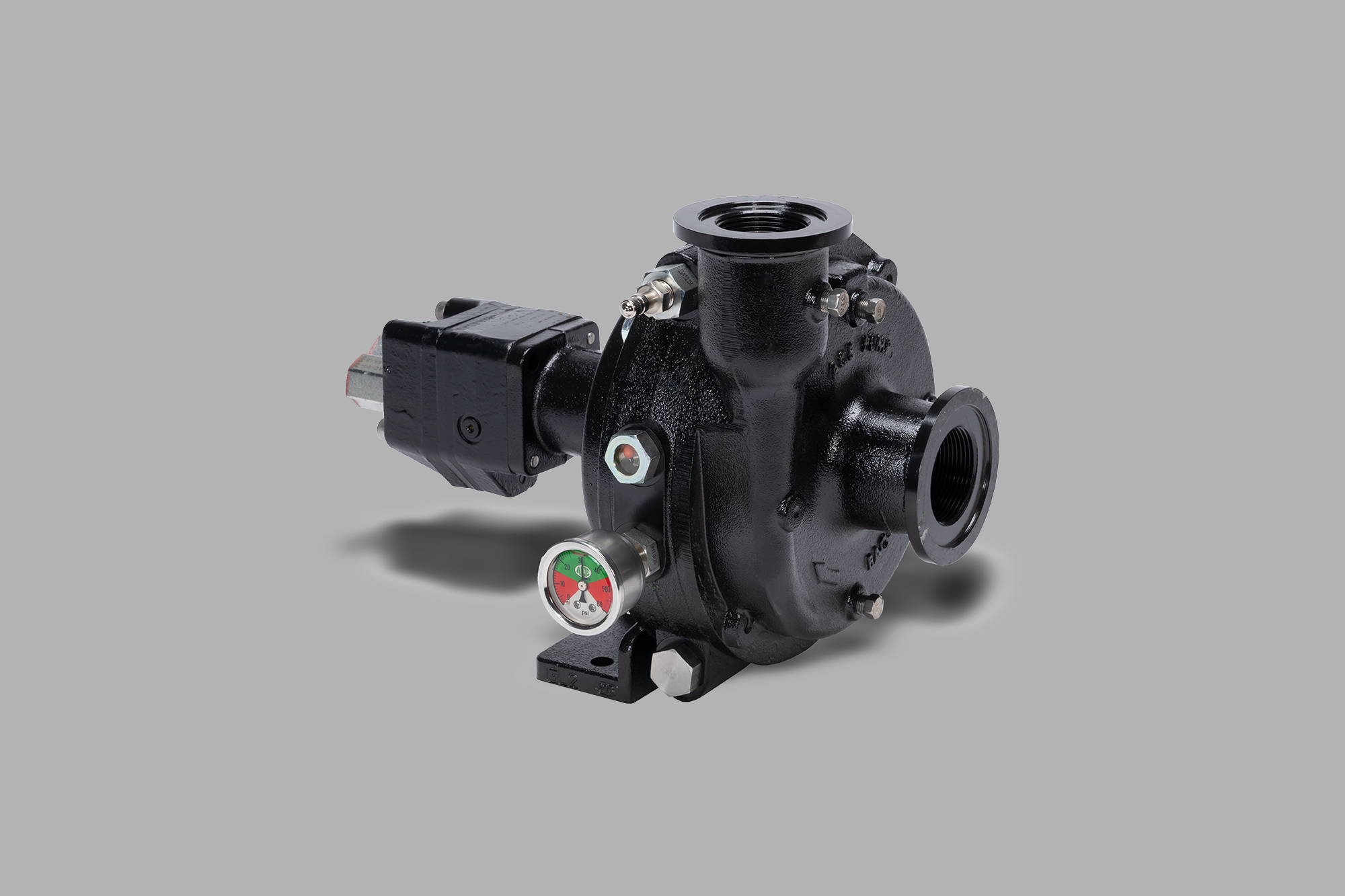

FMCWS-155F-HYD-206
Suction: 220 Flange 1-1/2" NPT
Discharge: 200 Flange 1-1/4" NPT
Pressures up to 120 PSI (8.3 BAR)
Flows up to 145 GPM (550 LPM) for 206 motor

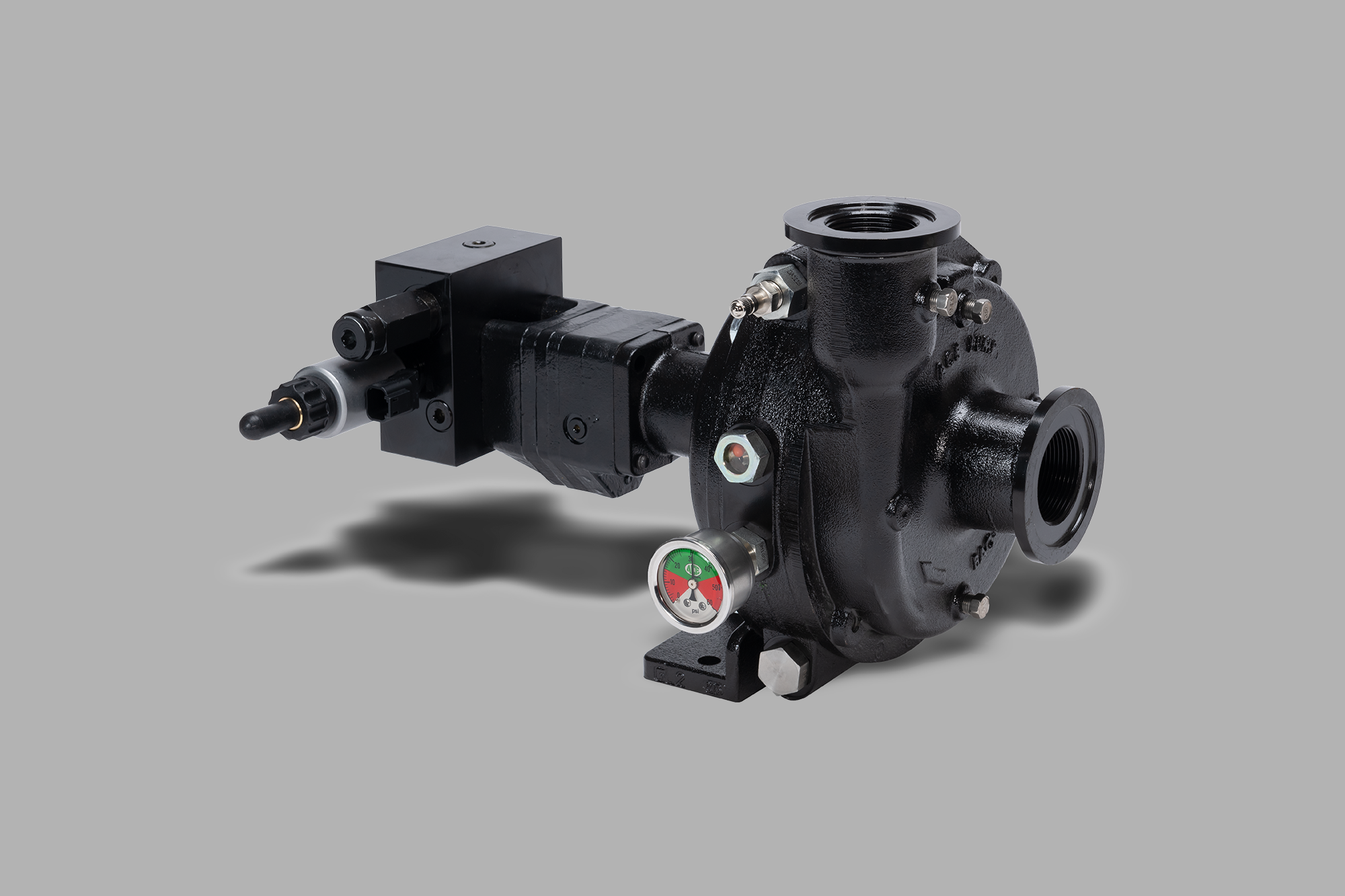

FMCWS-155F-HYD-206-PWM
Suction: 220 Flange 1-1/2" NPT
Discharge: 200 Flange 1-1/4" NPT
Pressures up to 120 PSI (8.3 BAR)
Flows up to 145 GPM (550 LPM) for 206 motor
Pulse Width Modulated (PWM) motor

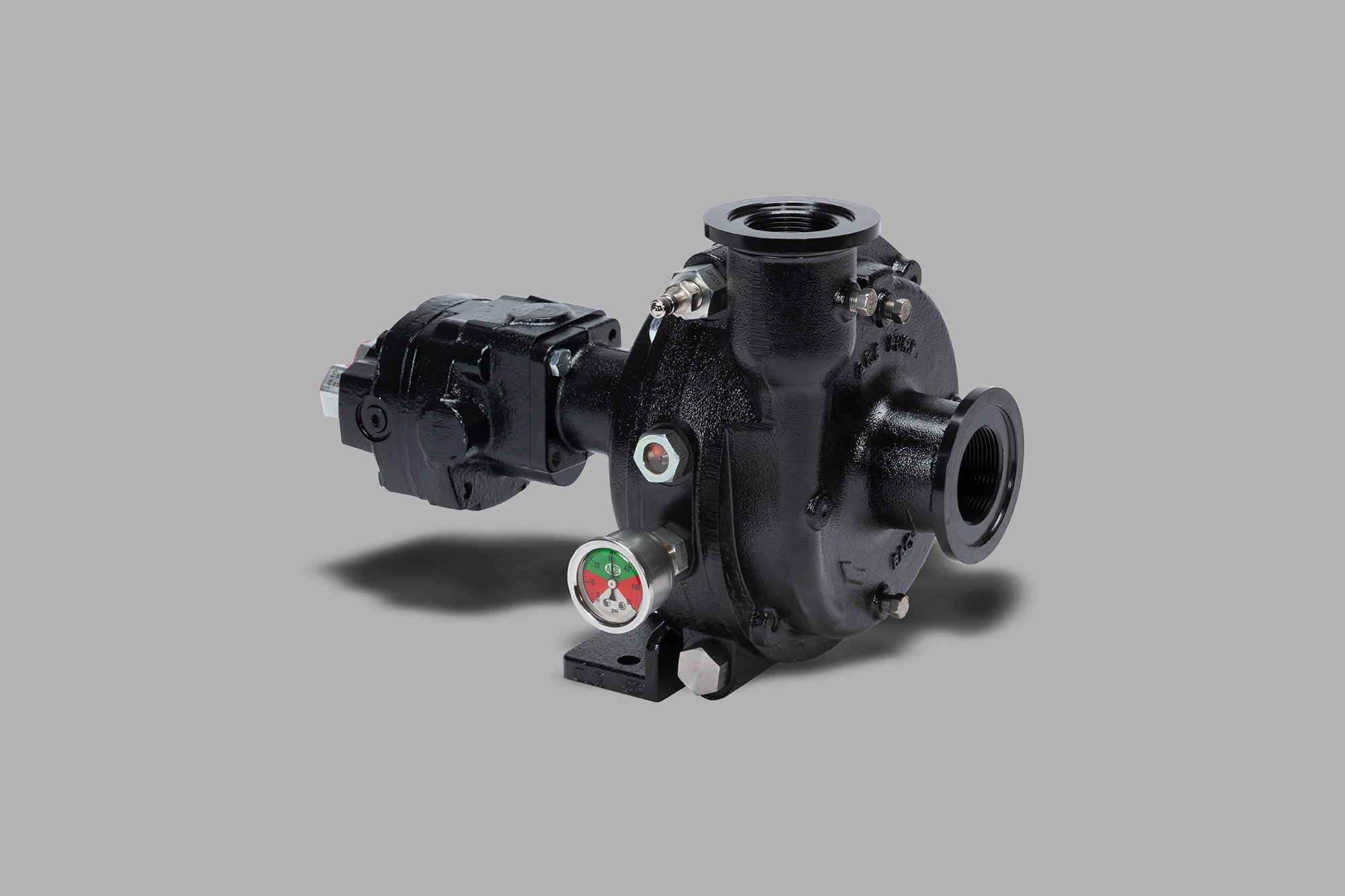

FMCWS-155F-HYD-304 | FMCWS-155F-HYD-306
Suction: 220 Flange 1-1/2" NPT
Discharge: 200 Flange 1-1/4" NPT
Pressures up to 130 PSI (9 BAR)
Flows up to 155 GPM (587 LPM)

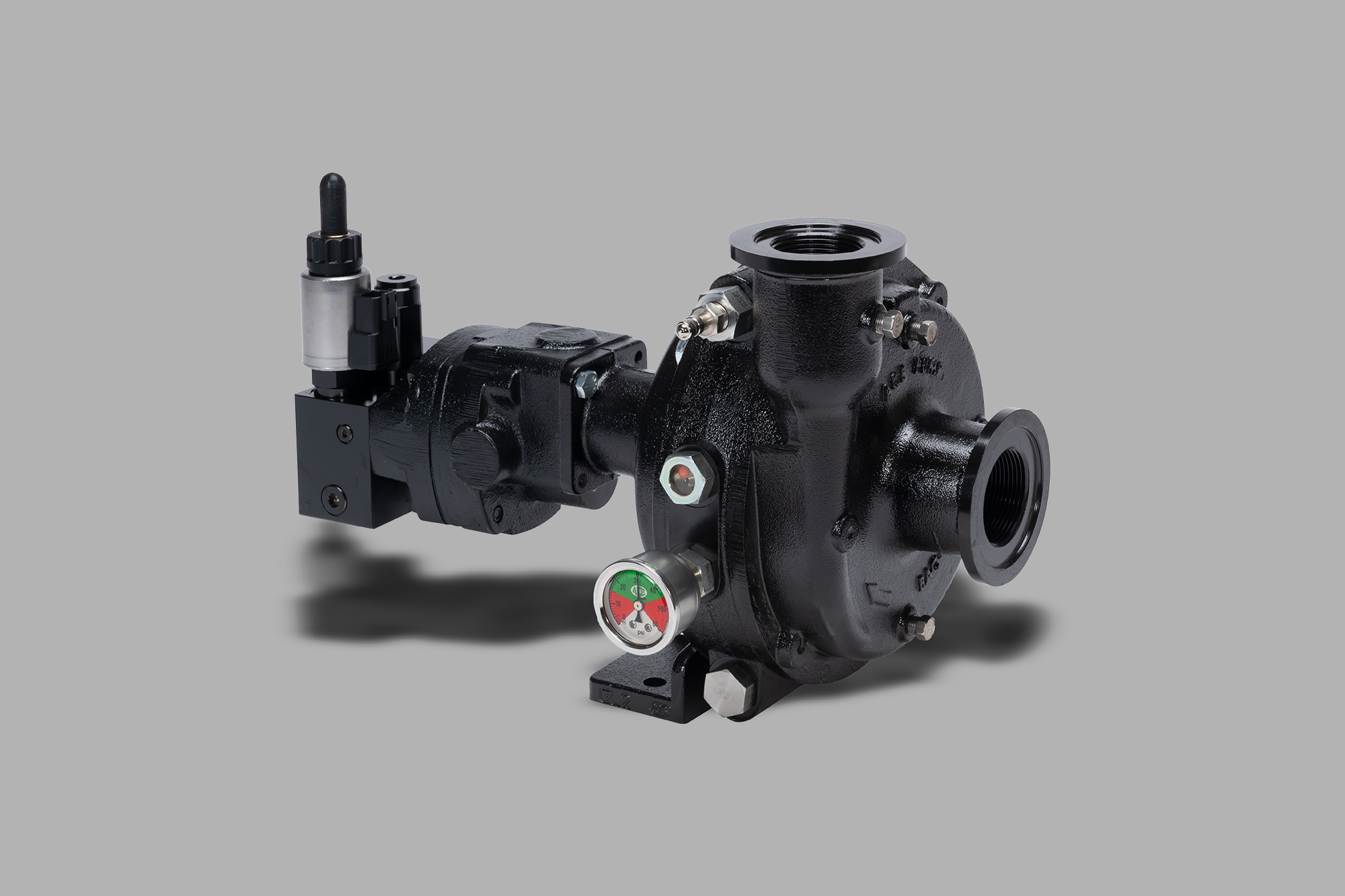

FMCWS-155F-HYD-304-PWM
Suction: 220 Flange 1-1/2" NPT
Discharge: 200 Flange 1-1/4" NPT
Pressures up to 130 PSI (9 BAR)
Flows up to 155 GPM (587 LPM)
Pulse Width Modulated (PWM) motor
FMCWS-155FS-HYD-206
Suction: 220 Flange 1-1/2" NPT
Discharge: 200 Flange 1-1/4" NPT
Pressures up to 120 PSI (8.3 BAR)
Flows up to 145 GPM (550 LPM) for 206 motor
Stainless Steel Wet End Pump for corrosion resistance

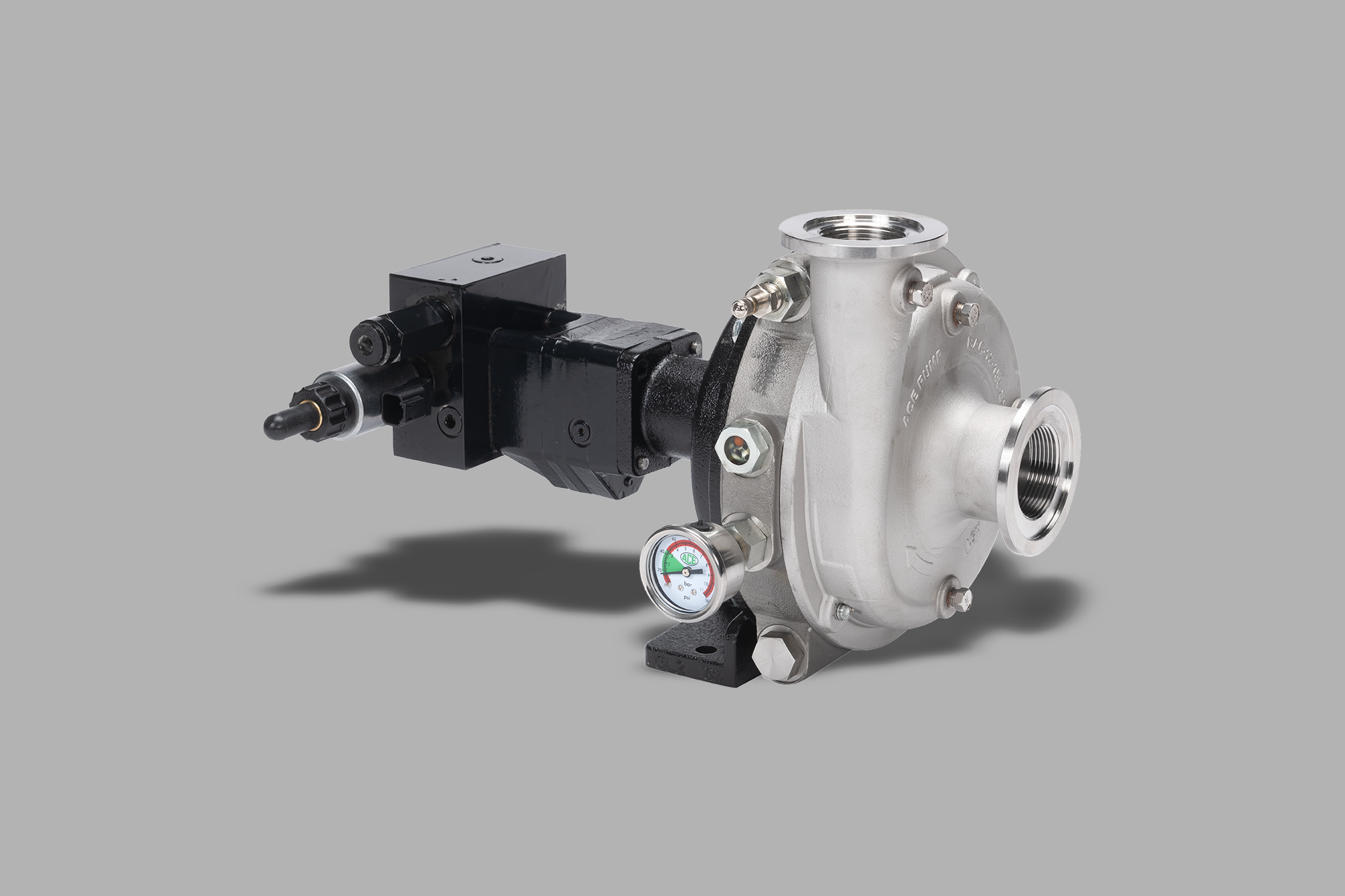

FMCWS-155FS-HYD-206-PWM
Suction: 220 Flange 1-1/2" NPT
Discharge: 200 Flange 1-1/4" NPT
Pressures up to 120 PSI (8.3 BAR)
Flows up to 145 GPM (550 LPM) for 206 motor
Pulse Width Modulated (PWM) motor
Stainless Steel Wet End Pump for corrosion resistance

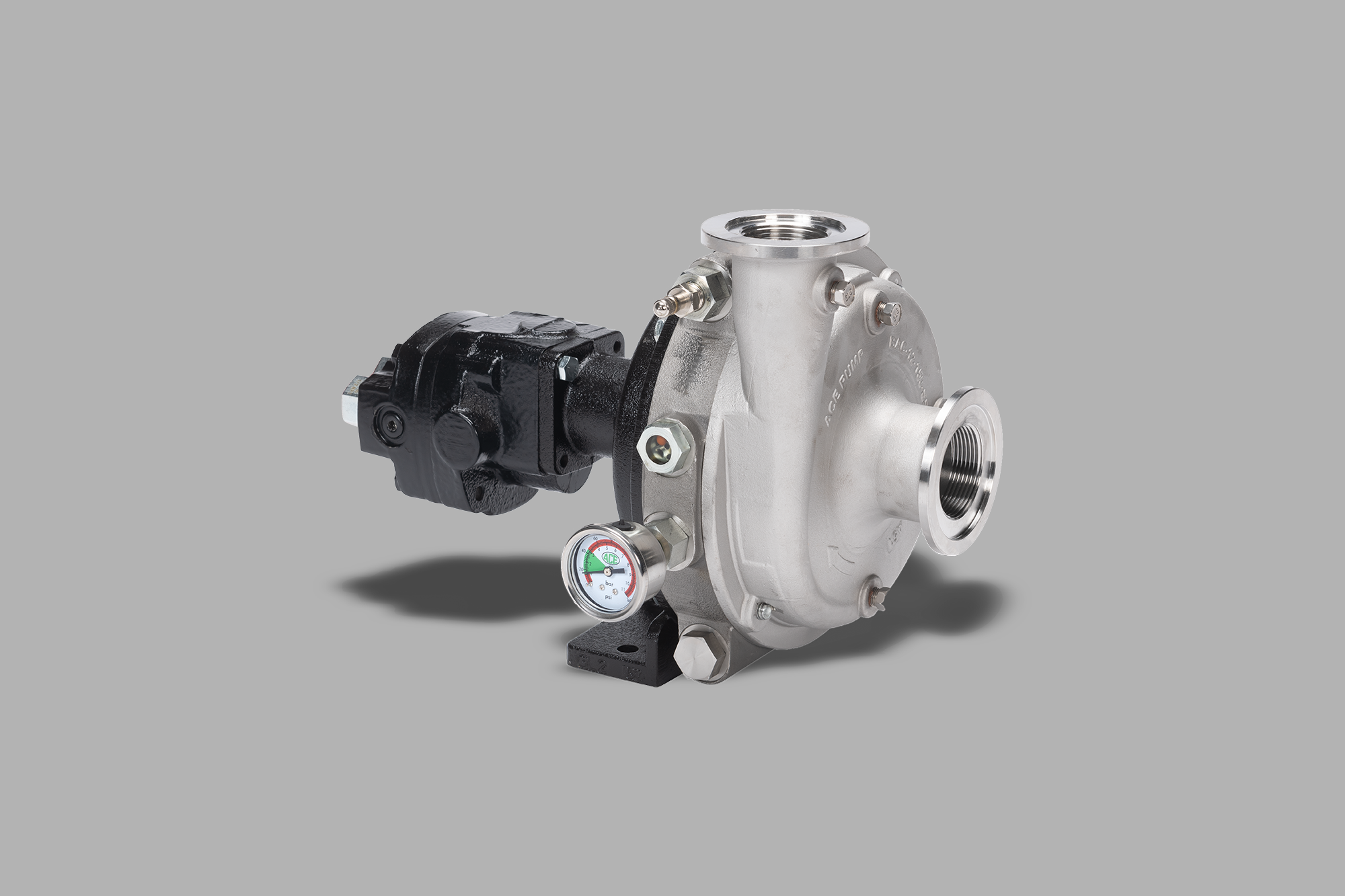

FMCWS-155FS-HYD-304 | FMCWS-155FS-HYD-306
Suction: 220 Flange 1-1/2" NPT
Discharge: 200 Flange 1-1/4" NPT
Pressures up to 130 PSI (9 BAR)
Flows up to 155 GPM (587 LPM)
Stainless Steel Wet End Pump for corrosion resistance

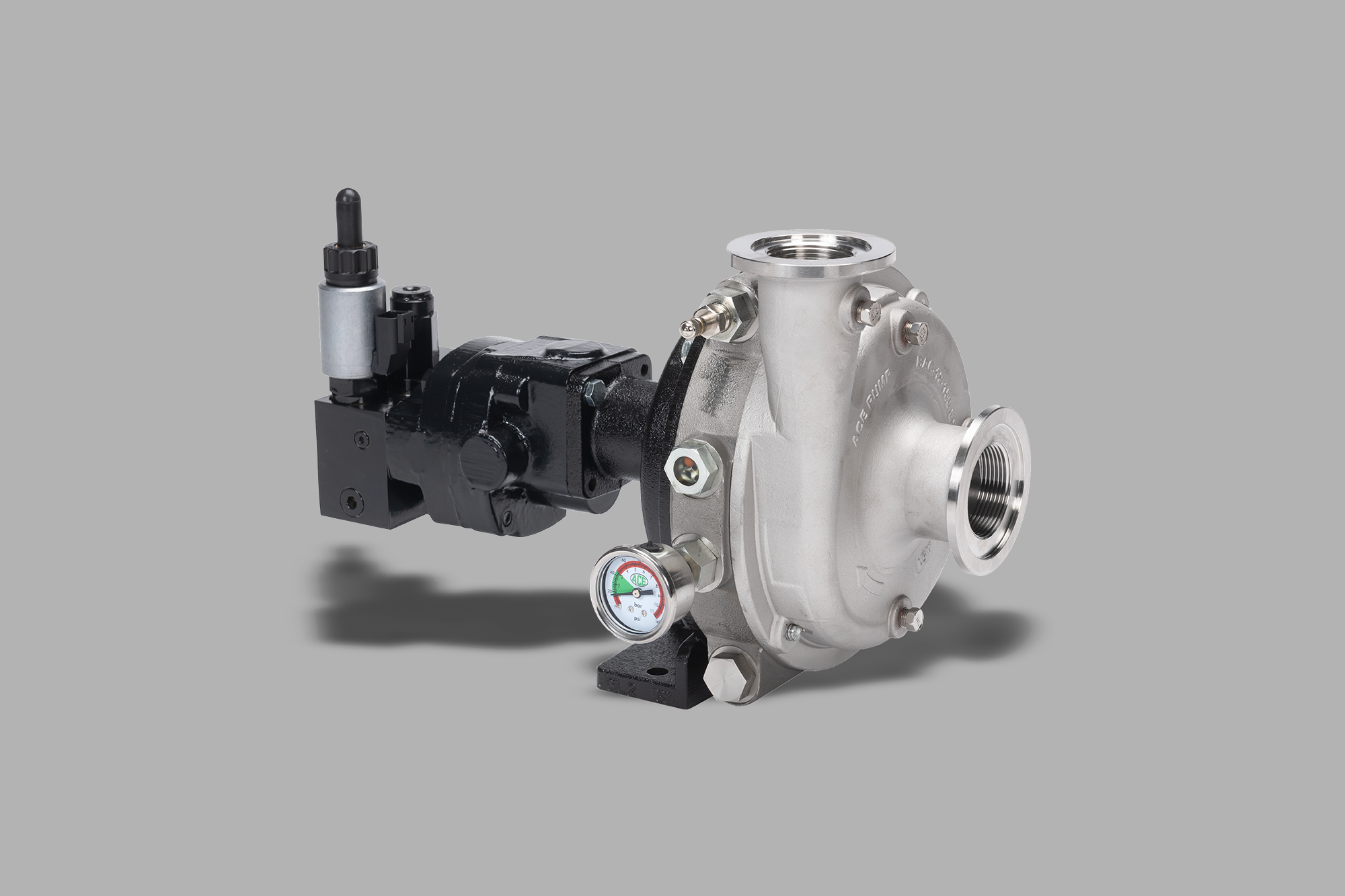

FMCWS-155F-HYD-304-PWM
Suction: 220 Flange 1-1/2" NPT
Discharge: 200 Flange 1-1/4" NPT
Pressures up to 130 PSI (9 BAR)
Flows up to 155 GPM (587 LPM)
Pulse Width Modulated (PWM) motor
Stainless Steel Wet End Pump for corrosion resistance

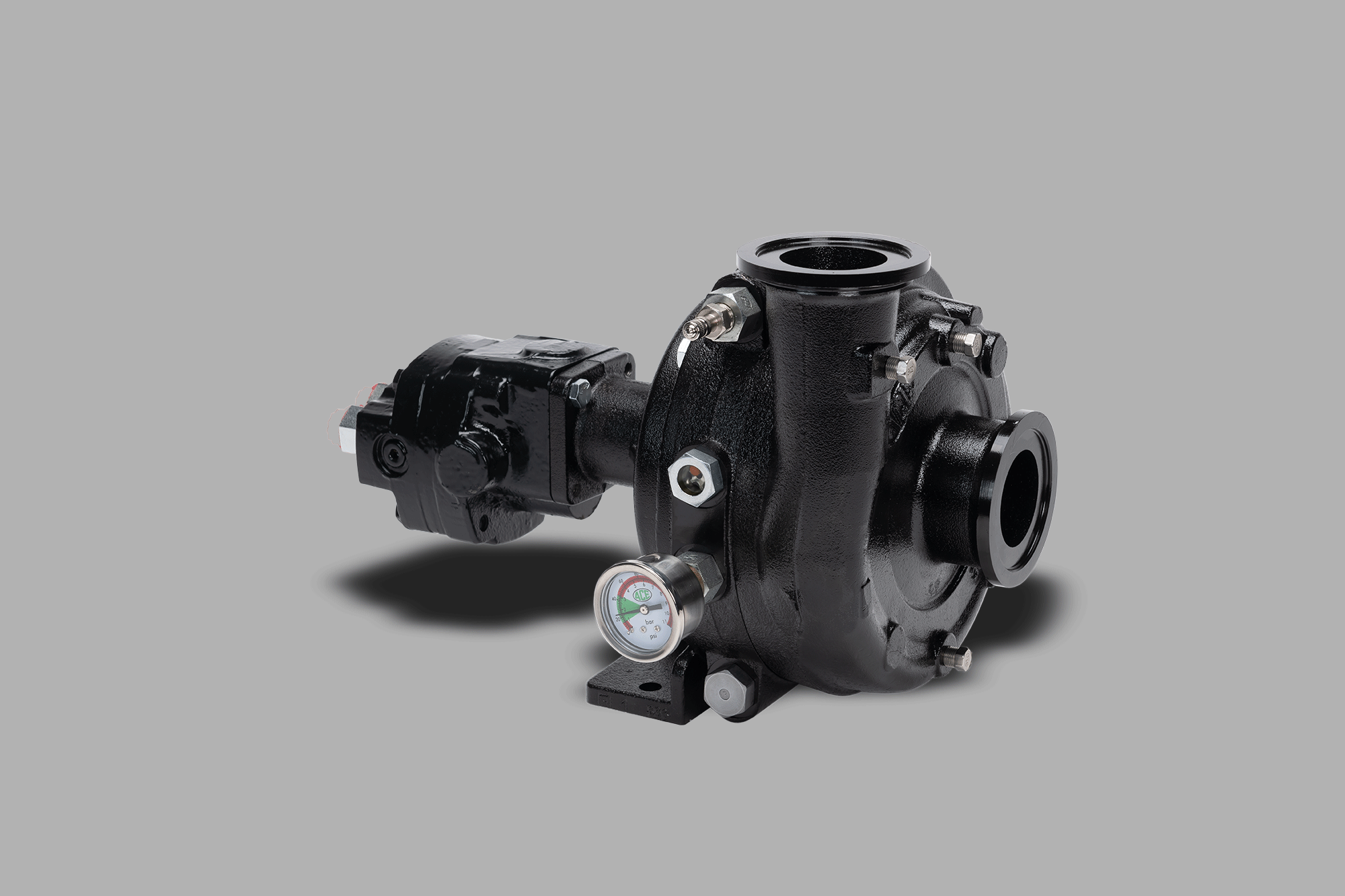

FMCWS-225F-HYD-304 | FMCWS-225F-HYD-306
Suction: 220 Flange
Discharge: 220 Flange
Pressures up to 120 PSI (8.3 BAR) for 304 motor
Pressures up to 130 PSI (9 BAR) for 306 motor
Flows up to 220 GPM (833 LPM)

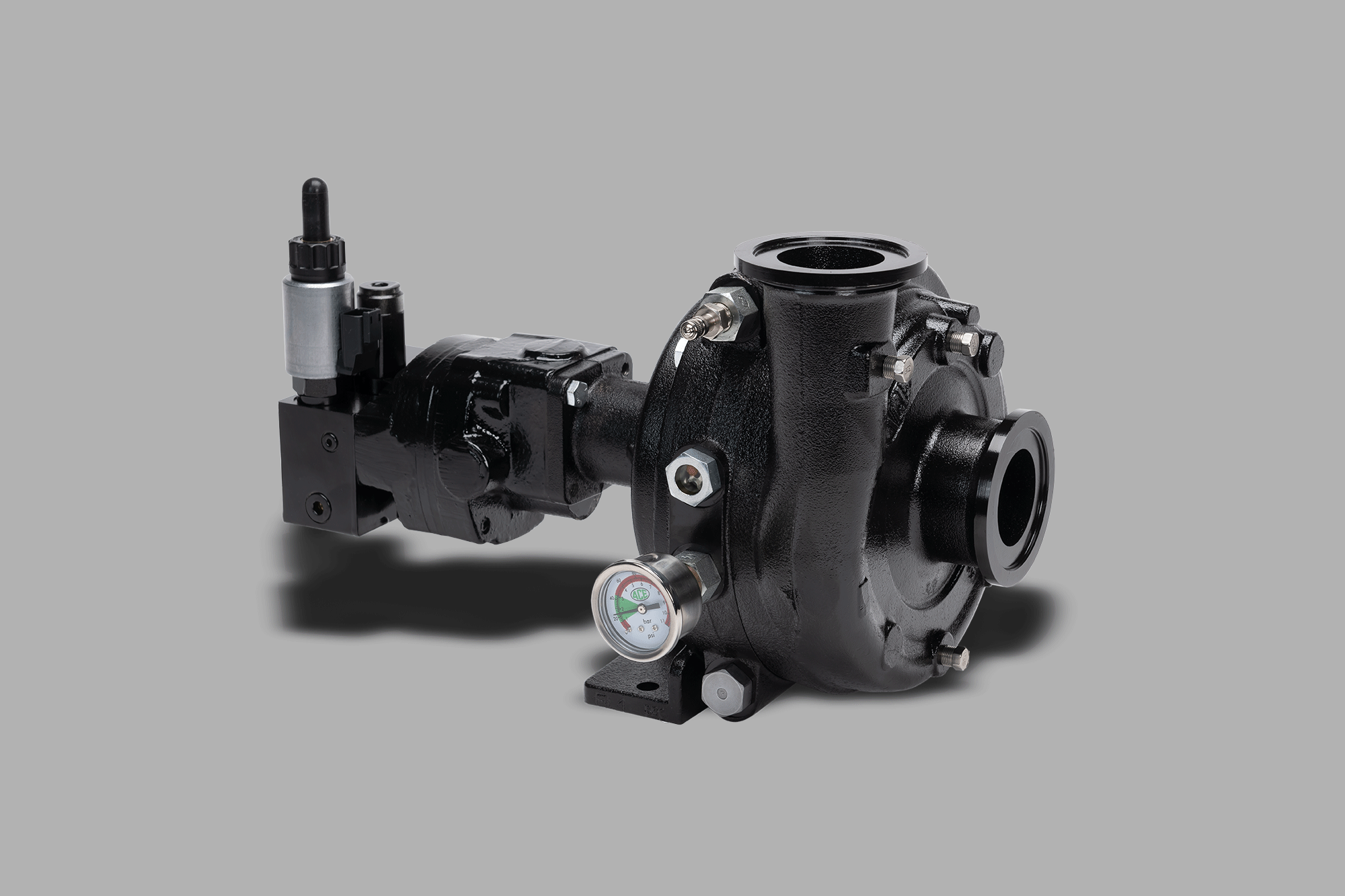

FMCWS-225F-HYD-304-PWM
Suction: 220 Flange
Discharge: 220 Flange
Pressures up to 120 PSI (8.3 BAR)
Flows up to 220 GPM (833 LPM)

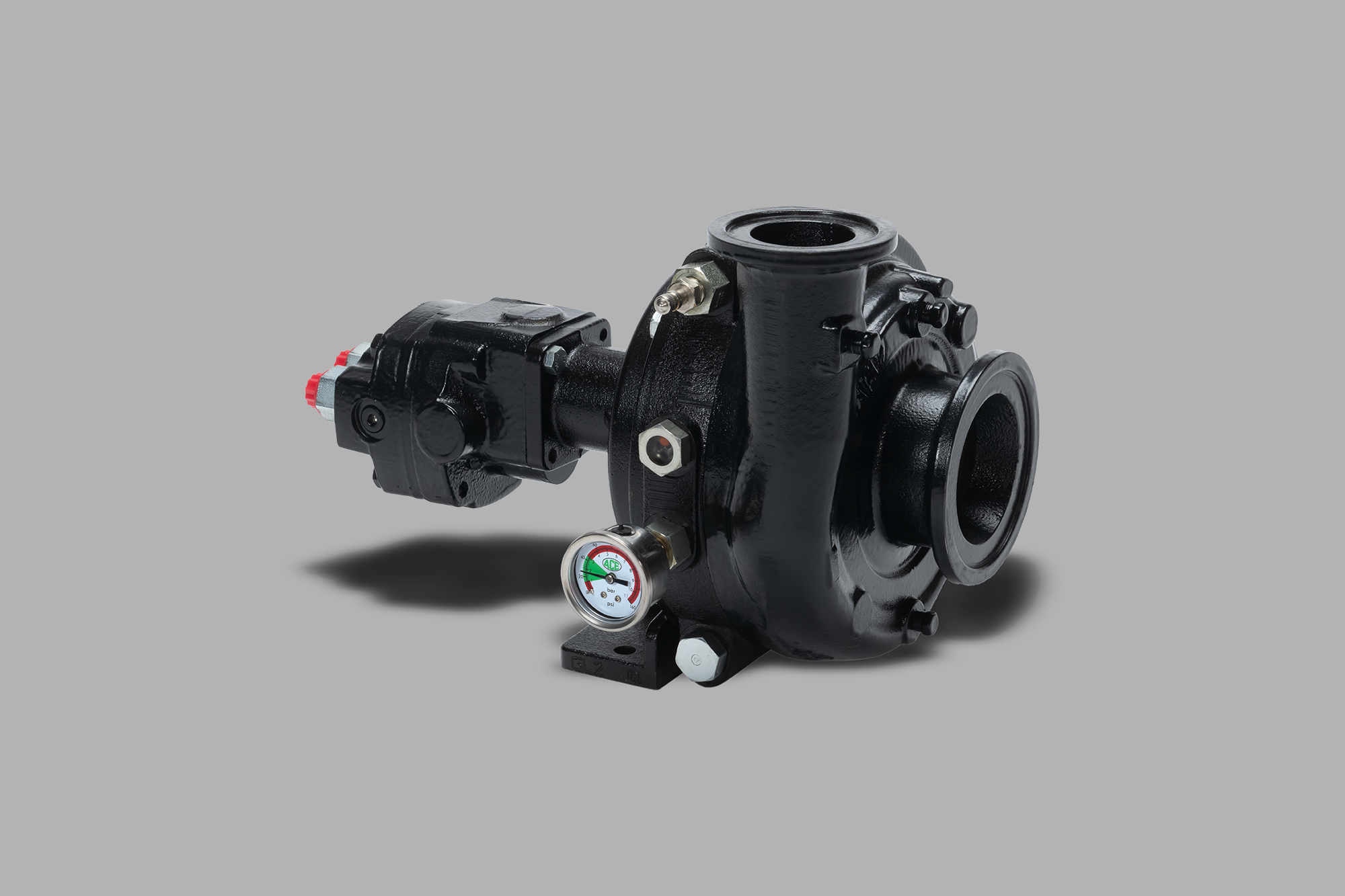

FMCWS-255F-HYD-304 | FMCWS-255F-HYD-306
Suction: 300 Flange
Discharge: 220 Flange
Pressures up to 120 PSI (8.3 BAR) for 304 motor
Pressures up to 130 PSI (9 BAR) for 306 motor
Flows up to 260 GPM (984 LPM)

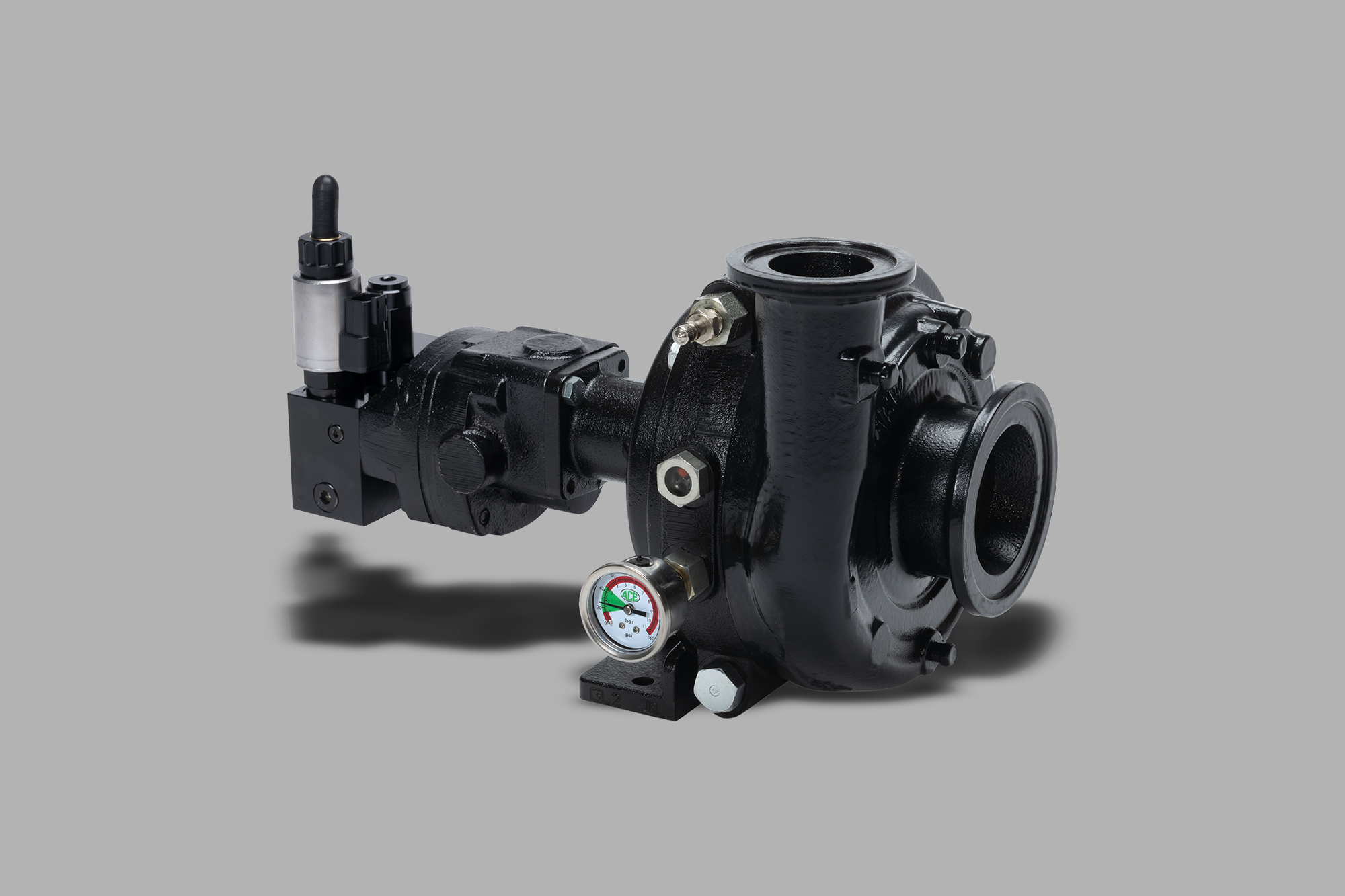

FMCWS-255F-HYD-304-PWM
Suction: 300 Flange
Discharge: 220 Flange
Pressures up to 120 PSI (8.3 BAR) for 304 motor
Flows up to 260 GPM (984 LPM)
Pulse Width Modulated (PWM) motor

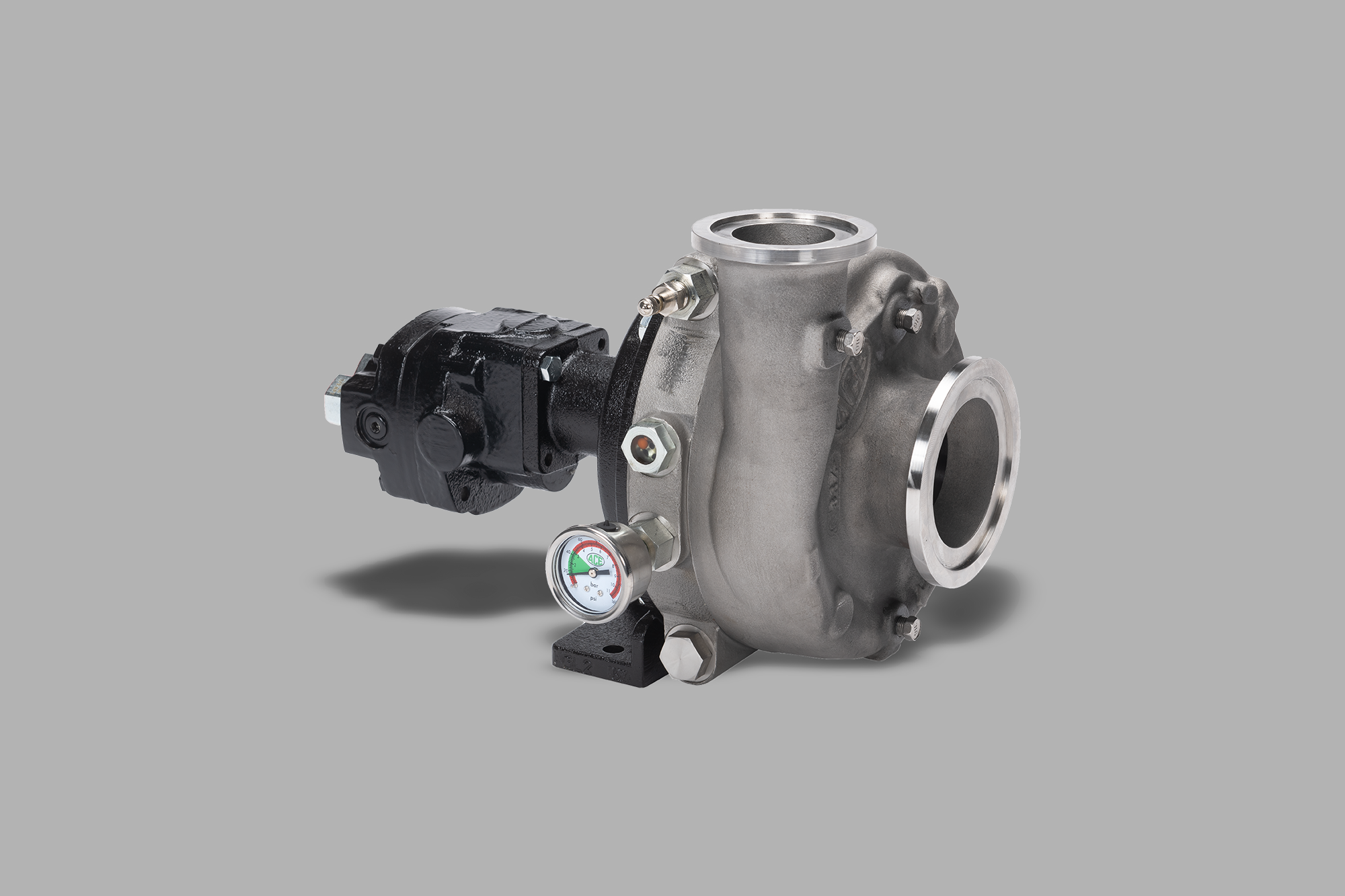

FMCWS-255FS-HYD-304 | FMCWS-255FS-HYD-306
Suction: 300 Flange
Discharge: 220 Flange
Pressures up to 120 PSI (8.3 BAR) for 304 motor
Pressures up to 130 PSI (9 BAR) for 306 motor
Flows up to 260 GPM (984 LPM)
Stainless Steel Wet End Pump for corrosion resistance

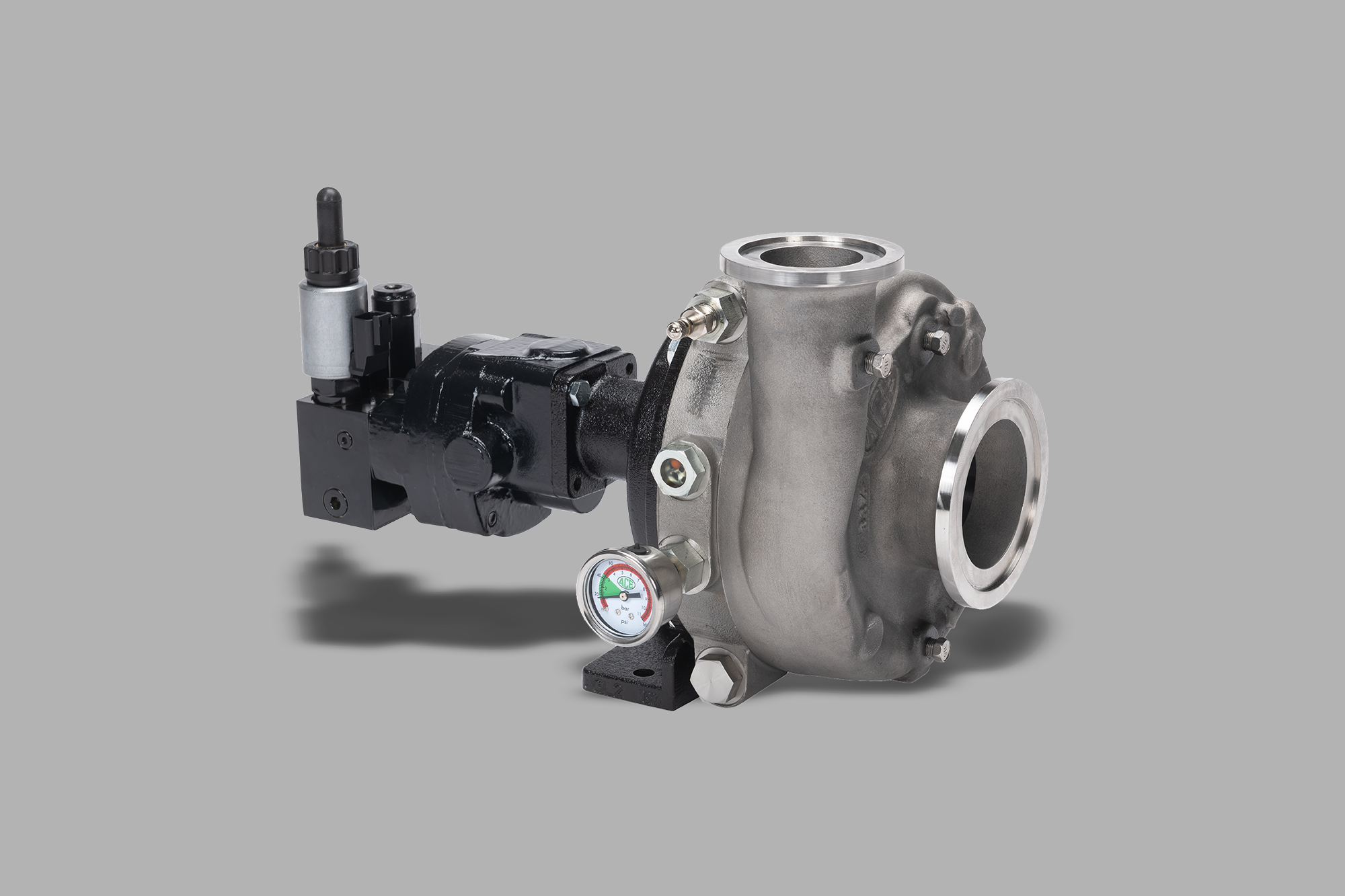

FMCWS-255FS-HYD-304-PWM
Suction: 300 Flange
Discharge: 220 Flange
Pressures up to 120 PSI (8.3 BAR) for 304 motor
Flows up to 260 GPM (984 LPM)
Pulse Width Modulated (PWM) motor
Stainless Steel Wet End Pump for corrosion resistance

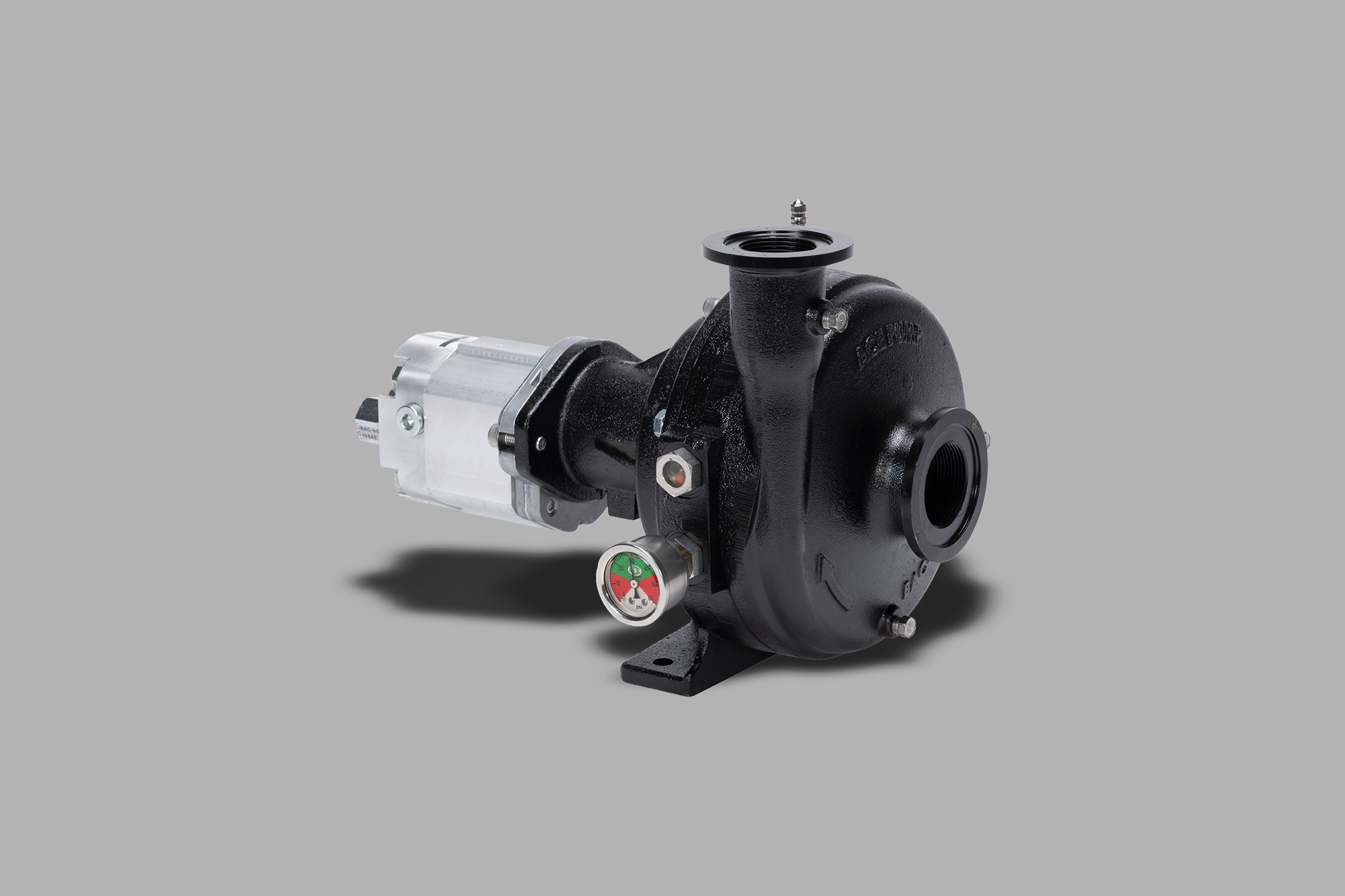

FMCWS-650F-HYD
Suction: 220 Flange 1-1/2" NPT
Discharge: 200 Flange 1-1/4" NPT
Pressures up to 160 PSI (11 BAR)
Flows up to 170 GPM (644 LPM)

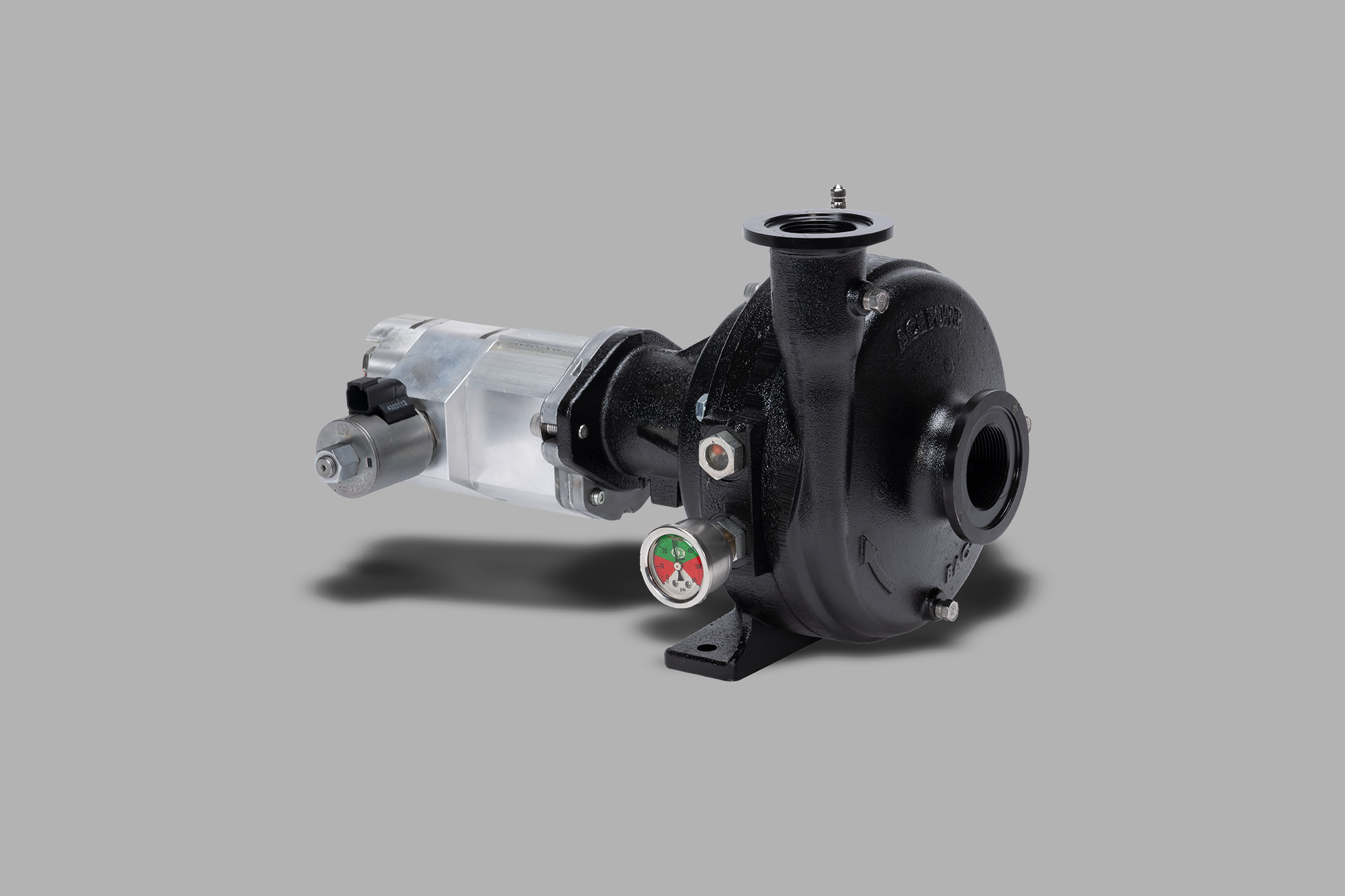

FMCWS-650F-HYD-PWM
Suction: 220 Flange 1-1/2" NPT
Discharge: 200 Flange 1-1/4" NPT
Pressures up to 160 PSI (11 BAR)
Flows up to 170 GPM (644 LPM)
Pulse Width Modulated (PWM) motor

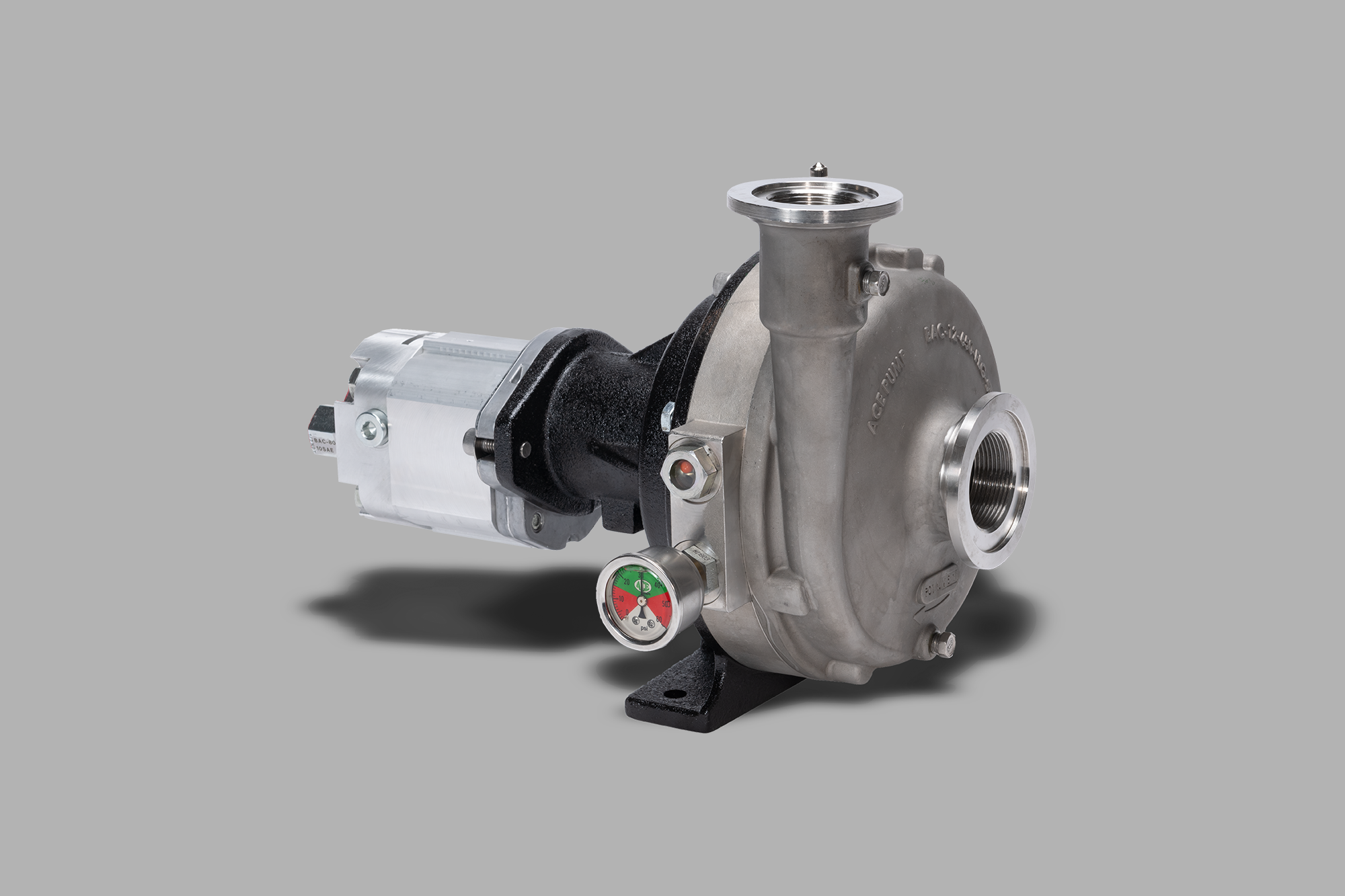

FMCWS-650FS-HYD
Suction: 220 Flange 1-1/2" NPT
Discharge: 200 Flange 1-1/4" NPT
Pressures up to 160 PSI (11 BAR)
Flows up to 170 GPM (644 LPM)
Stainless Steel Wet End Pump for corrosion resistance

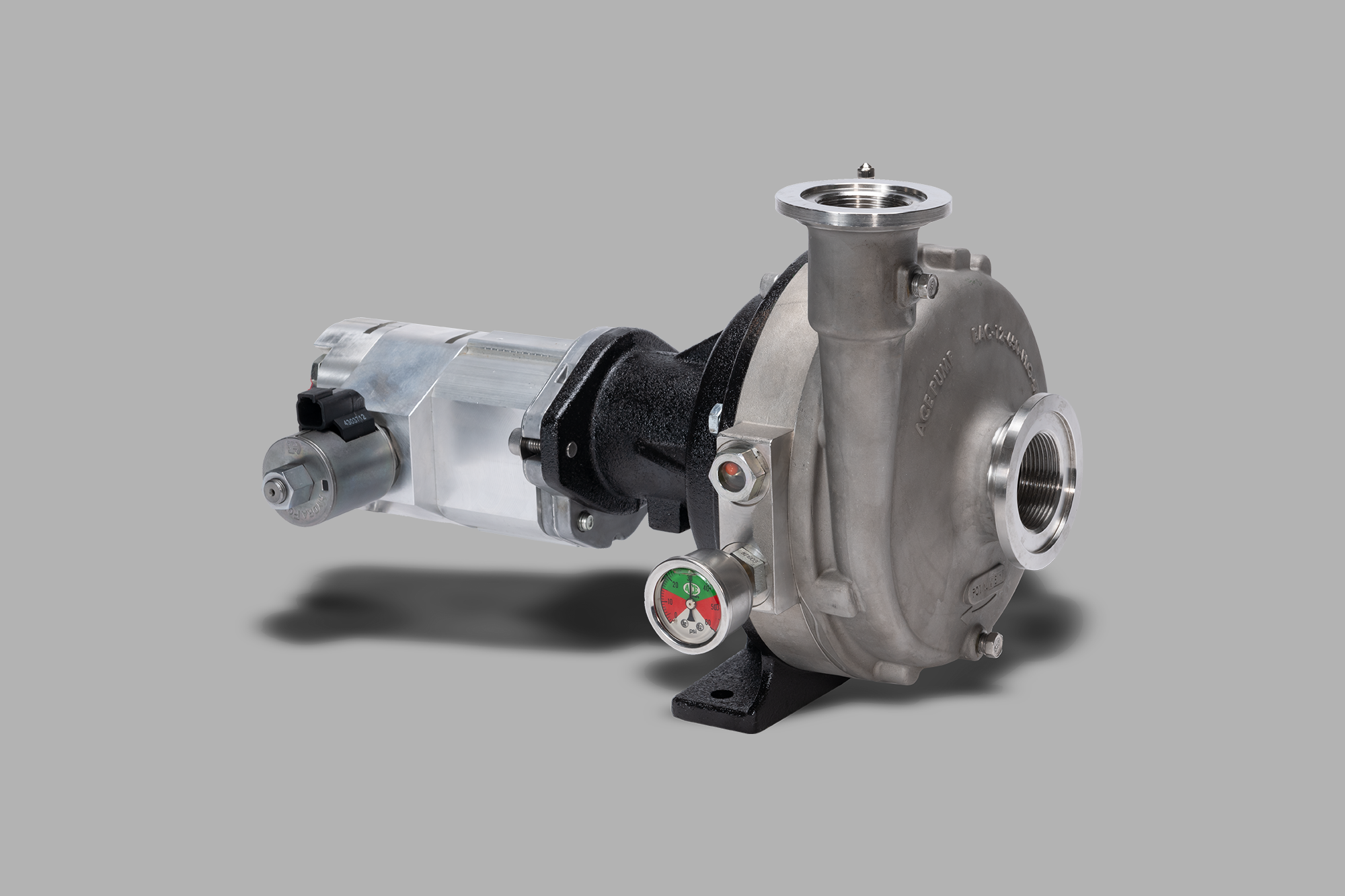

FMCWS-650FS-HYD-PWM
Suction: 220 Flange 1-1/2" NPT
Discharge: 200 Flange 1-1/4" NPT
Pressures up to 160 PSI (11 BAR)
Flows up to 170 GPM (644 LPM)
Pulse Width Modulated (PWM) motor
Stainless Steel Wet End Pump for corrosion resistance

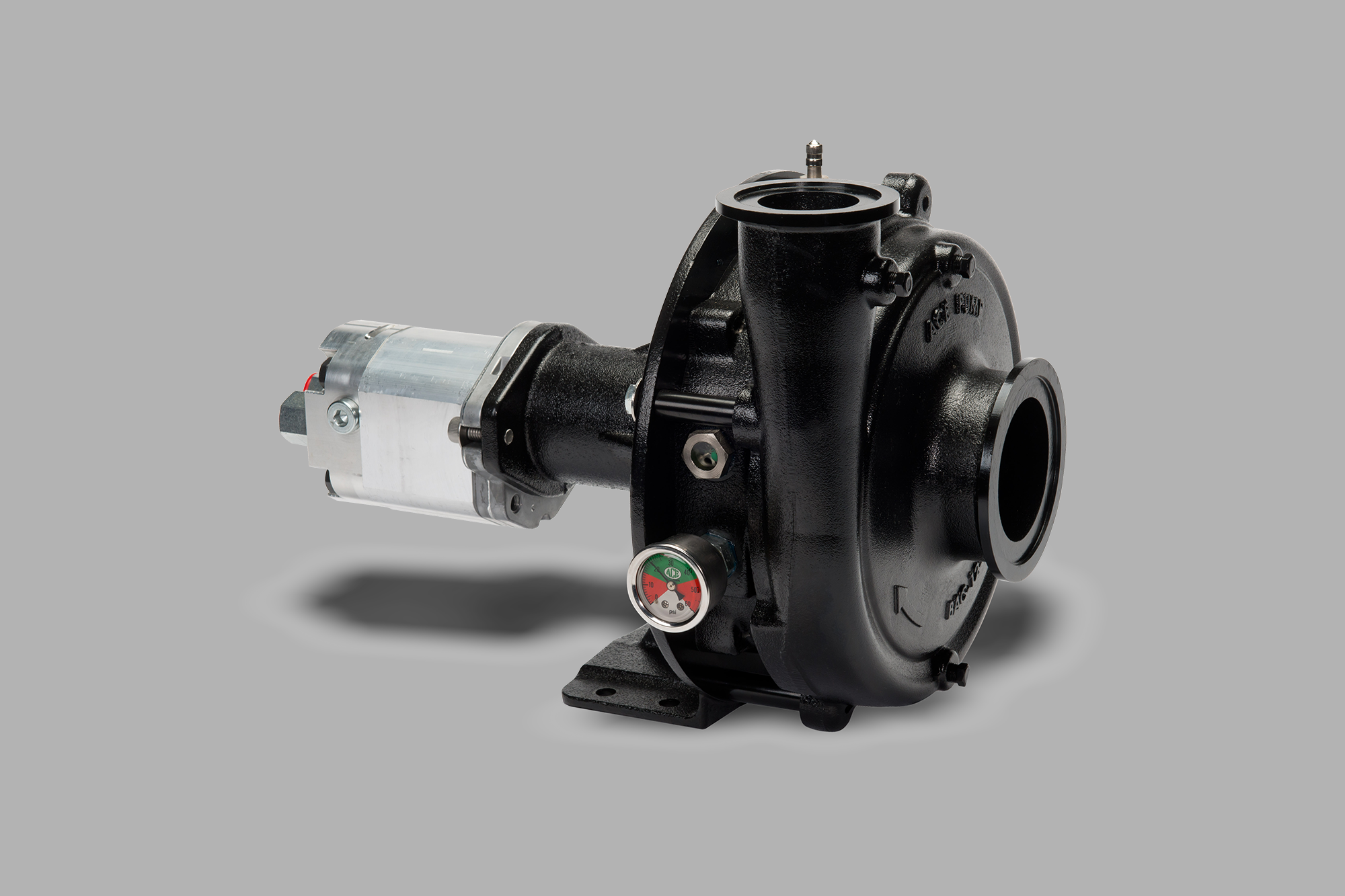

FMC-750F-HYD-M22 | FMC-750F-HYD-M25
Suction: 300 Flange
Discharge: 220 Flange
Pressures up to 150 PSI (10.3 BAR)
Flows up to 290 GPM (1,098 LPM)

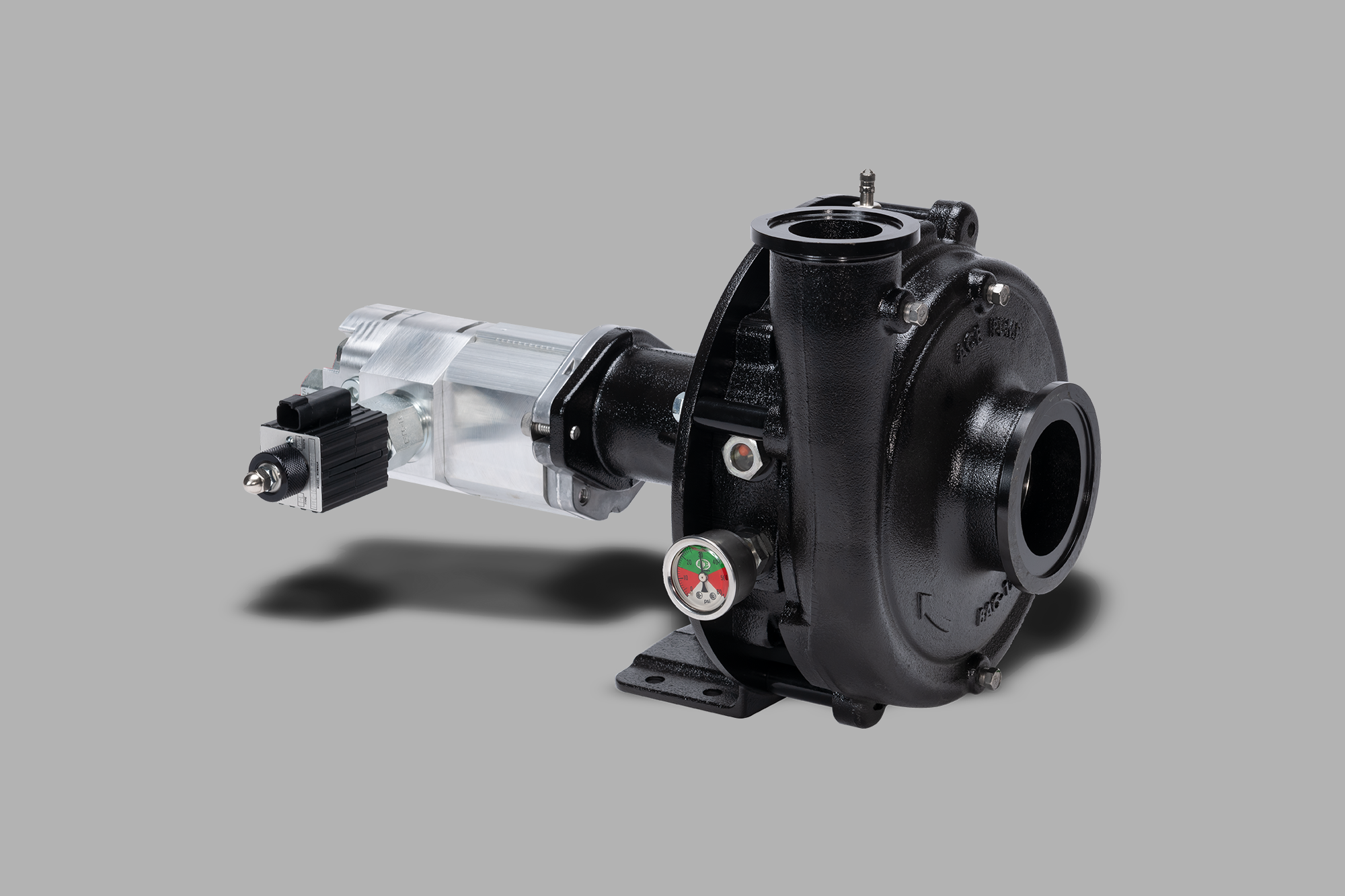

FMC-750F-HYD-M22-PWM
Suction: 300 Flange
Discharge: 220 Flange
Pressures up to 150 PSI (10.3 BAR)
Flows up to 290 GPM (1,098 LPM)
Pulse Width Modulated (PWM) motor

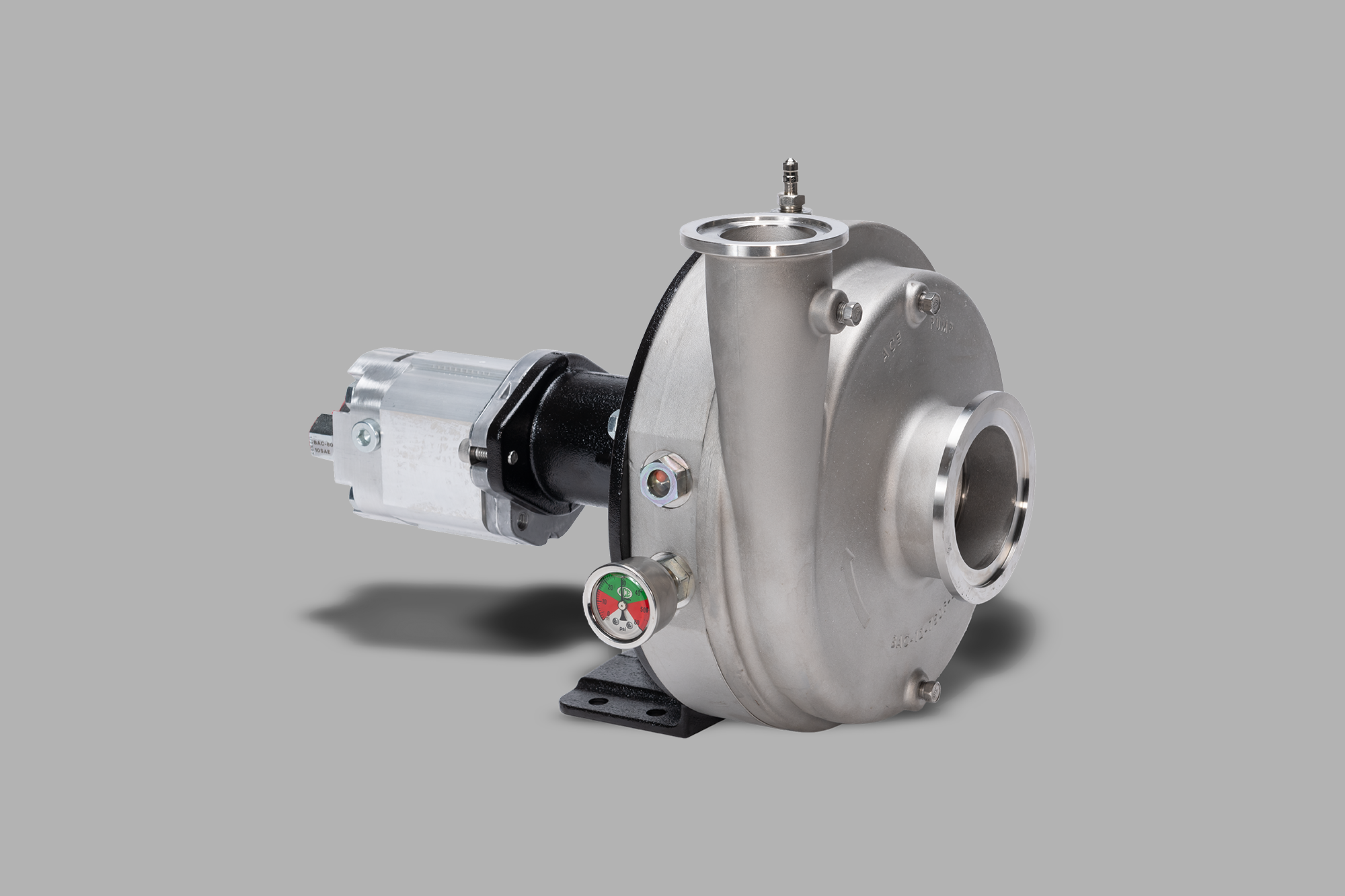

FMC-755FS-HYD-M22 | FMC-755FS-HYD-M25
Suction: 300 Flange
Discharge: 220 Flange
Pressures up to 150 PSI (10.3 BAR)
Flows up to 290 GPM (1,098 LPM)
Stainless Steel Wet End Pump for corrosion resistance

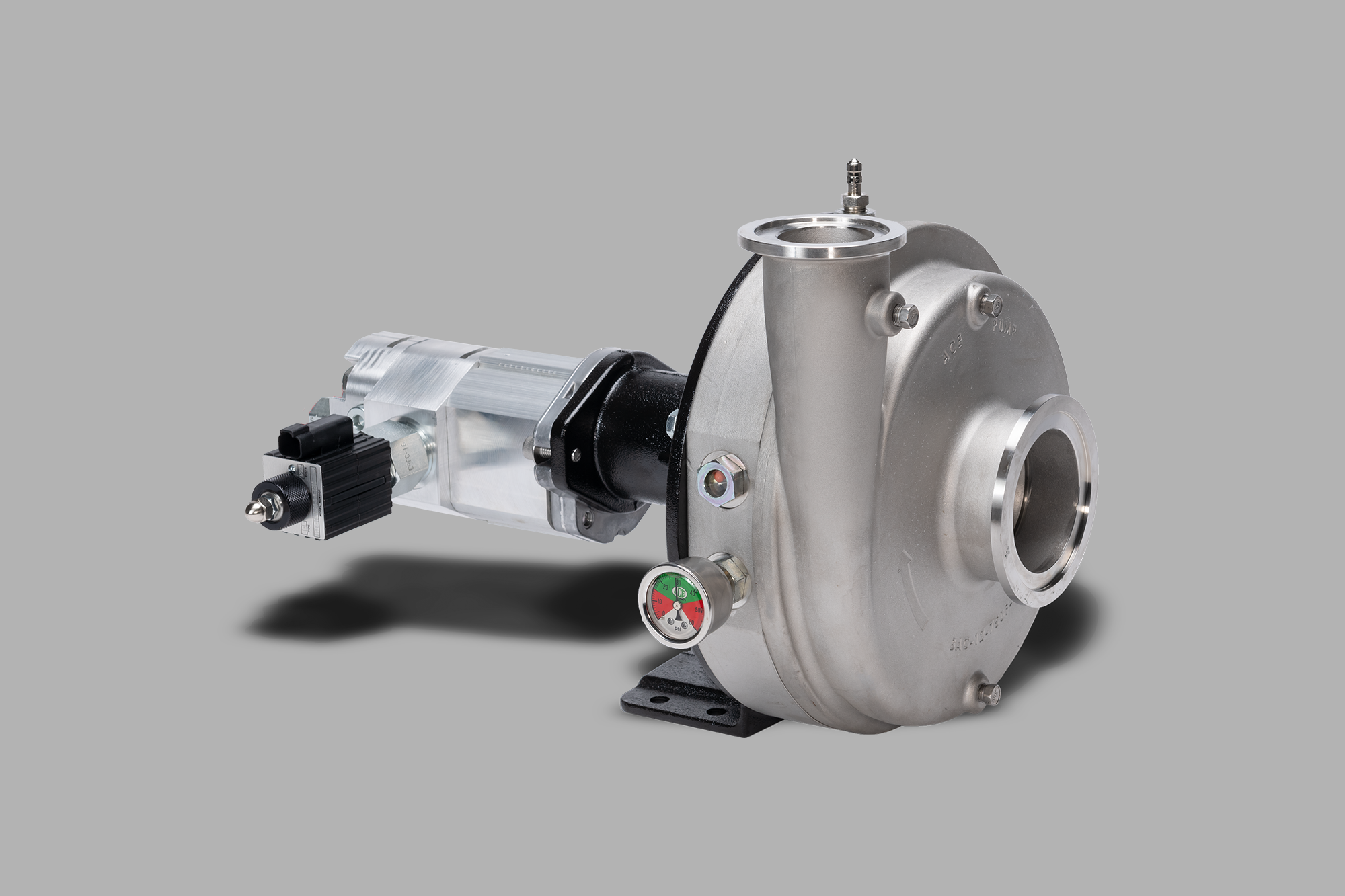

FMC-755FS-HYD-M22-PWM
Suction: 300 Flange
Discharge: 220 Flange
Pressures up to 150 PSI (10.3 BAR)
Flows up to 290 GPM (1,098 LPM)
Pulse Width Modulated (PWM) motor
Stainless Steel Wet End Pump for corrosion resistance

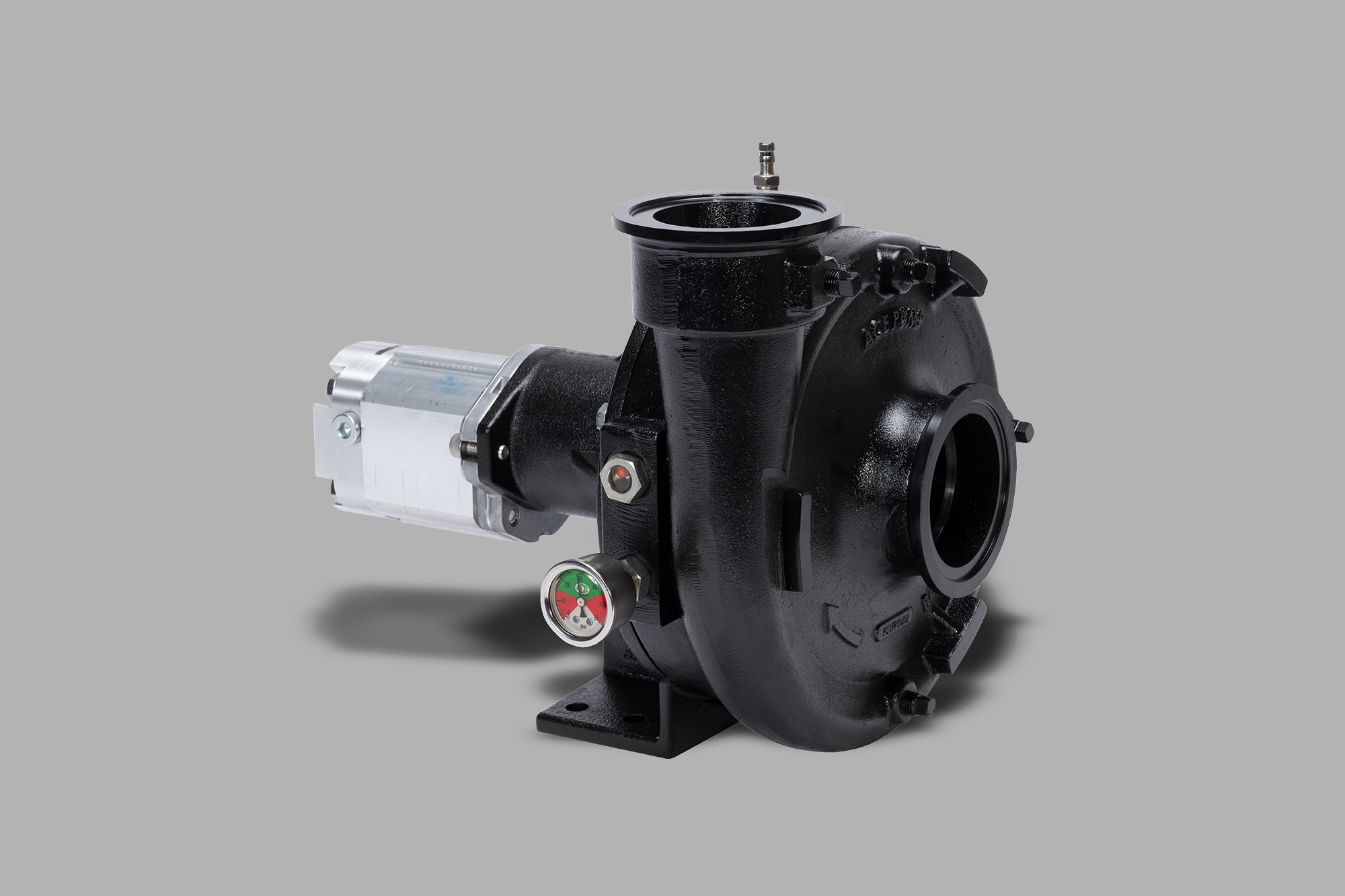

FMC-855F-HYD
Suction: 300 Flange
Discharge: 300 Flange
Pressures up to 150 PSI (10.3 BAR)
Flows up to 345 GPM (1,306 LPM)
